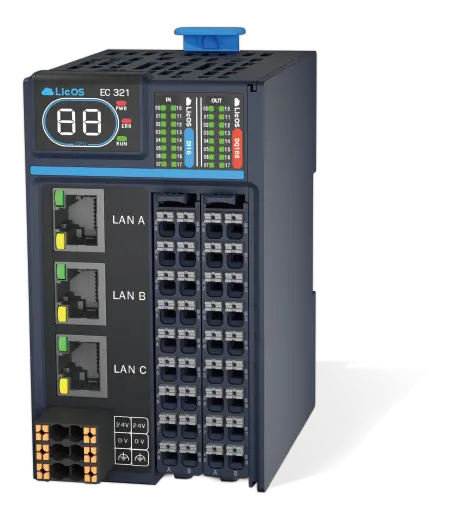

Union Science Group EC321 PLC
Save Product 300 series CPU, CPU model 321.
3 RJ45 ports.
The first two RJ45 (LAN A, LAN B) are switches.
3 serial ports (RS232 and 2 * RS485 included);
1 CAN port;
16 digital inputs (source/drain type).
16-way digital output (source type).
Supports Profinet, Ethernet/IP, Ethercat, Modbus TCP
Program with Codesys
Did you like this product? Add to favorites now and follow the product.
Save Product
1800 2 ION TG Call Us
Description
1. Support Codesys IEC61131-3 programming language (LD, FBD, IL, ST, SFC, CFC).
2. CPU module supports many kinds of industrial field buses, CAN bus, RS485 bus, industrial Ethernet bus, etc.
3. The CPU module supports various industrial fieldbus protocols: CANopen, Modbus TCP master-slave, Modbus UDP master-slave, free protocol, network pass-through, Modbus RTU/ASCII master-slave, Profinet/IO master-slave, EtherNet/IP, EtherCAT, etc.
4. Can communicate with the host computer through multiple network protocols: support for MQTT protocol, OPC UA Server protocol.
5. 128M program storage space, 128M data storage space, 4M can realize data power-off hold, 32G expandable storage space.
6. 4ns/basic instruction instruction running speed.
7. CPU supports Webvisu (Web version of HMI).
8. Web information configuration is available via the Web.
9. Locally integrated standard backplane bus, the body supports up to 16 GL200 I/O modules, the first and last refresh time is less than 4ms.
10. 127 racks can be expanded via fieldbus.
Additional information
| Brand | Union Science |
|---|
