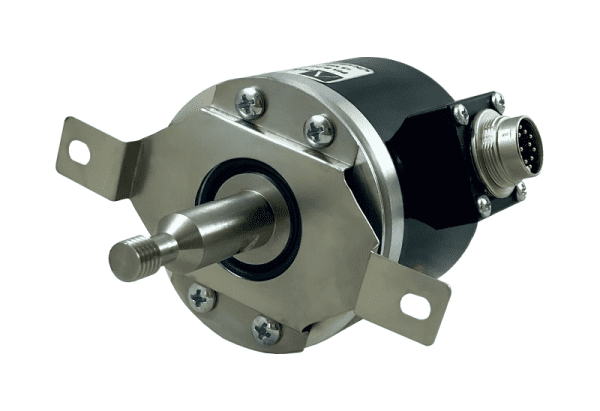

Atek ARC/ARS-S-1XP8001 Special Series
Save Product Save Product
Call for Pricing
ARS: Magnetic, ARC: Optical principle incremental angular measurement
58 mm body diameter
Main body is 12 mm, end part is 8 mm thread
1024 pulse resolution
Durable up to 6000 RPM
IP54 protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Measuring Type | 58 mm |
|---|---|
| Resolution | 1024 pulse |
| Max Operating Speed | 6000 RPM |
| Output Frequency | 300 kHz |
| Supply Voltage | 10 … 30 VDC or 5 VDC |
| Current Consumption | 50 mA nominal |
| Output Type | Push pull, TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Input Current | 100 mA max (per channel) |
| Operating Temperature | -25 ile +85 °C |
| Protection Class | IP54 |
Additional information
| Brand | Atek |
|---|---|
| Output | PNP |
