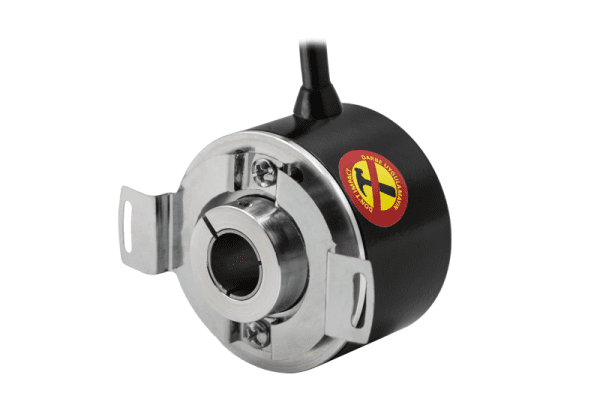

Atek ARC H 58 Hollow Shaft
Save Product Save Product
Call for Pricing
Incremental measurement with optical principle
58 mm body diameter
10, 12, 14 or 15 mm hollow shaft options
Resolution options from 1024 to 20000 pulses
Durable up to 6000 RPM
IP54 protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Measuring Type | Optical |
|---|---|
| Resolution | Different options from 1024 to 20000 pulses |
| Max Operating Speed | 6000 RPM |
| Output Frequency | 300 kHz |
| Supply Voltage | 10 … 30 VDC or 5 VDC |
| Current Consumption | 50 mA nominal |
| Output Type | Push pull, TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Input Current | 100 mA max (per channel) |
| Operating Temperature | -25…+85 °C |
| Storage Temperature | -40…+85 °C |
| Electrical Connection | 5 or 8 x 0,14 mm2 shielded cable |
| Body Diameter | 58 mm |
| Shaft Diameters | 10, 12, 14, 15 mm |
| Protection Class | IP54 |
| Material | Body: Aluminum Shaft: Stainless Steel |
Additional information
| Brand | Atek |
|---|---|
| Output | PNP |
