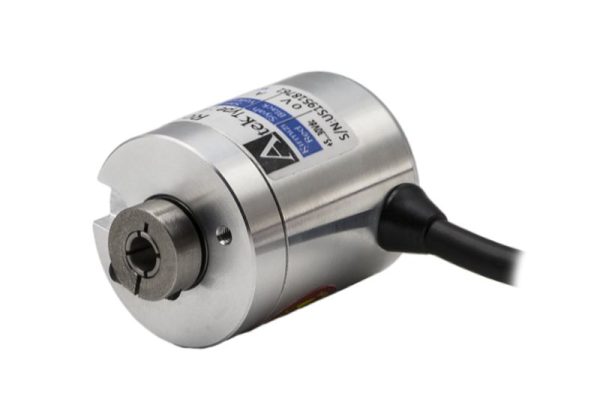

Atek ARS B 37 End Hollow Shaft
Save Product Save Product
Call for Pricing
Incremental measurement with magnetic principle
37 mm body diameter
4, 5 or 6 mm end hollow shaft options
Resolution options from 1 to 1024 pulses
Durable up to 3000 RPM
IP54 protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Measuring Type | Magnetic |
|---|---|
| Resolution | Different options from 1 to 1024 pulses |
| Max Operating Speed | 3000 RPM |
| Output Frequency | 300 kHz |
| Supply Voltage | 10 … 30 VDC or 5 VDC |
| Current Consumption | 50 mA nominal |
| Output Type | Push pull, TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Input Current | 100 mA max (per channel) |
| Operating Temperature | -25…+85 °C |
| Storage Temperature | -40…+85 °C |
| Electrical Connection | 5 or 8 x 0,14 mm2 shielded cable |
| Body Diameter | 37 mm |
| Protection Class | IP54 |
| Material | Body: Aluminum Shaft: Stainless Steel |
Additional information
| Brand | Atek |
|---|---|
| Output | PNP |
