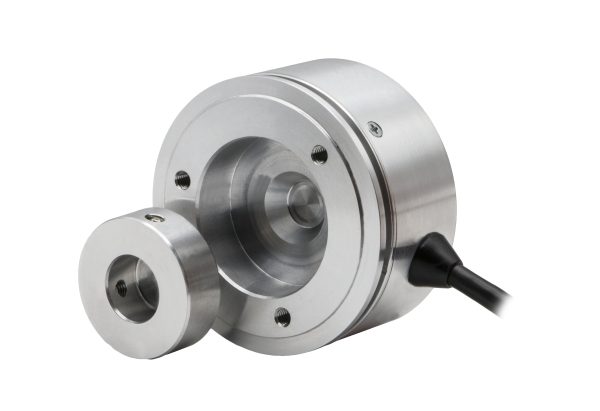

Atek ART B 58 Non-Contact Rotary Encoder
Save Product Save Product
Call for Pricing
Non-contact measurement with magnetic principle
Incremental output
58 mm body diameter
Different hollow diameters from 6 mm to 20 mm
All resolution values between 1 and 1024 pulses
20.000 RPM operating speed
IP65 protection class
LED indicator
Compatible with Delem, Cybelec and ESA
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Max Operating Speed | 20.000 RPM maks. |
|---|---|
| Measuring Type | Magnetic, non-contact |
| Resolution | All resolution values between 1 and 1024 pulses |
| Supply Voltage | TTL: 5 VDC PP: 10…30VDC |
| Current Consumption | 50 mA nominal |
| Output Type | Push pull, TTL Line Driver, Open Collector |
| Output Signals | A, /A, B, /B, Z, /Z |
| Operating Temperature | -25…+85 °C |
| Storage Temperature | -40…+85 °C |
| Electrical Connection | M16 socket or 5 or 8 x 0,14 mm shielded cable |
| Shaft Diameters | 6 mm, 8 mm or 10 mm |
| Protection Class | IP67 |
| Material | Aluminum |
Additional information
| Brand | Atek |
|---|---|
| Output | PNP |
