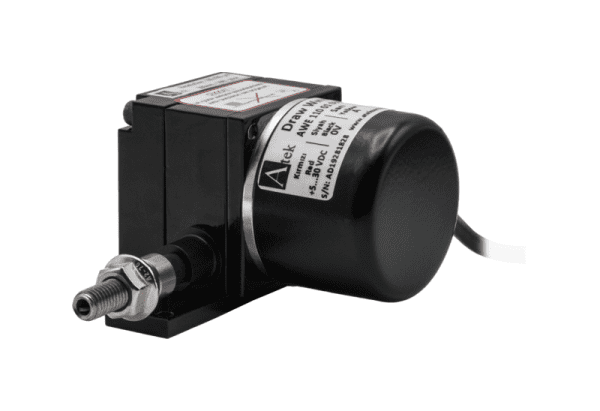

Atek AWE 110 Draw Wire Encoder
Save Product Save Product
Call for Pricing
Different stroke (measuring) lengths between 300 mm and 1200 mm
0.1 , 0.5 or 0.05 mm/pulse resolution options
2 m/s maximum speed
Incremental output
Small structure
IP53 protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Stroke (measuring) length | Different measuring lengths between 300 mm and 1200 mm |
|---|---|
| Resolution | 0.1 mm/pulse (standard) 0.2 mm/pulse 0.05 mm/pulse |
| Supply Voltage | 5…30V DC ± |
| Output Signals | A,B,Z (standard) A,B A,/A,B,/B A,/A,B,/B,Z,/Z |
| Measuring Type | Optic |
| Maximum Speed | 2 m/s |
| Maximum Output Current | 60 mA (per channel) |
| Required Force | 5 N |
| Accuracy | ±%0.25 FS |
| Operating Temperature | -25°C … +85°C |
| Materials | Housing: Aluminum/steel /plastic Measuring Wire: Stainless steel |
| Connection cable length | 3m (standard), 5m, 10m |
| IP Protection Class | IP53 |
Additional information
| Brand | Atek |
|---|---|
| Output | PNP |
