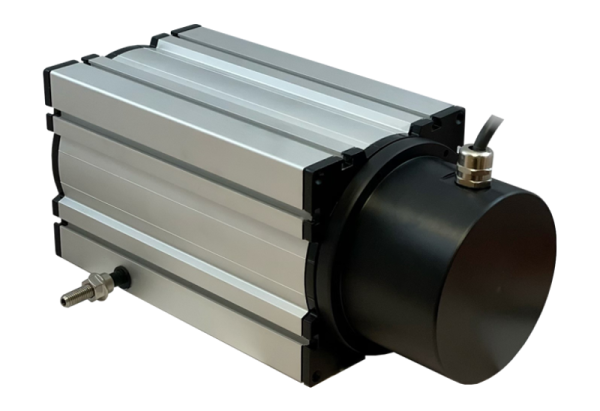

Atek AWP 515 Programmable Draw Wire Sensor
Save Product Save Product
Call for Pricing
Measuring length up to 15000 mm
0.05 mm high resolution
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP54 (Optional IP67) protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Sensing device | Magnetic absolute encoder |
|---|---|
| Supply Voltage | Analog: 15 … 26 VDC CANopen: 12 … 30 VDC |
| Current Consumption | ≤60 mA |
| Reverse Polarity Protection | Yes |
| Resolution | 0.05 mm |
| Linearity | ±%0.5 FS |
| Response Frequency | 500 Hz |
| Electrical Interface | Analog (programmable option) or CANopen |
| Electrical Connection | M12 / 5 pin male connector |
| Stroke (measuring) Length | Up to 15000 mm |
| Max Speed | 1 m/s |
| Protection class | IP54 (Optional IP67) |
| Operating Temp. | -40 … +85 °C |
| Material | Body: Aluminum Measuring Wire: Stainless Steel |
| Communication Profile | CiA 301 |
| Device Type | CANopen, CiA DS406 |
| Node ID | It can be set from 1 to 127 with LSS or SDO. Default Node ID:1 |
| Baud Rate | 10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDO Data Rate | 100 ms |
| Error Control | Heartbeat, Emergency Message |
| PDO | 3 Tx PDO |
| PDO Modes | Event/Time triggered, Synch/Asynch |
| SDO | 1 server |
| Position Information | Object Dictionary 0x6020 |
Additional information
| Brand | Atek |
|---|---|
| Output | Analog, CANopen |
