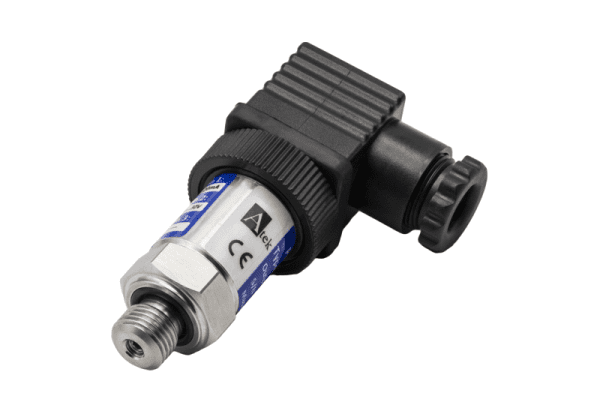

Atek BCT 22 Pressure Transmitter
Save Product Save Product
Call for Pricing
Piezoresistive working principle
Stainless steel housing (1.4305)
Optional 316L or titanium housing
Different models between 100 mBar and 600 Bar
Analog 4-20mA / 0-10V and CANopen output options
±0.5% F.S or ± 0.3% F.S accuracy
IP65 or IP67 protection class
Compact construction
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Measuring range | Diffrent models from 0…100mbar to 0…600Bar r Different vacuum models from 0… -100mbar to 0…-1Bar |
|---|---|
| Working Principle | Piezoresistive |
| Maximum Pressure Strength | 300%F.S. ≤700mbar, 200%F.S. <250Bar, 150%F.S ≥250Bar *Can be 3 or 5 times. |
| Oring – Sealing | Standard NBR, optional FKM(Viton) or EPDM |
| Supply Voltage | 4-20 mA: 8 … 32 VDC 0-20 mA: 12 … 30 VDC 0-10 V: 12 … 30 VDC Ratiometric: 5 VDC CANopen: 8…26 VDC |
| Current Consumption | 30mA max. |
| Output Signal | 4…20mA (2-wire), 0…20mA (3-wire) 0…10VDC, 1…6VDC , 0…5VDC , Ratiometric CANopen |
| Accuracy | ±%0,5 F.S @25ᵒC ±%0,3 F.S @25ᵒC |
| Response Time | 25ms (standard) … nominal pressure 1ms, 5ms, 125ms (optional) |
| Operating Temperature | -40°C…+85°C |
| Body Material | Stainless steel body – 1.4305 (AISI303) Optional stainless 316L or Titanium |
| Electrical Connection | Socker models DIN43650-A , DIN46350-C , M12 , Packard or PVC cable 3 x 0.14mm2 |
| Protection Classı | IP65 or IP67 **If M12 plug-in models use a press-pressed plug cable |
| Mounting / Tightening | 15 … 20 Nm |
Additional information
| Brand | Atek |
|---|---|
| Output | 4-20mA |
