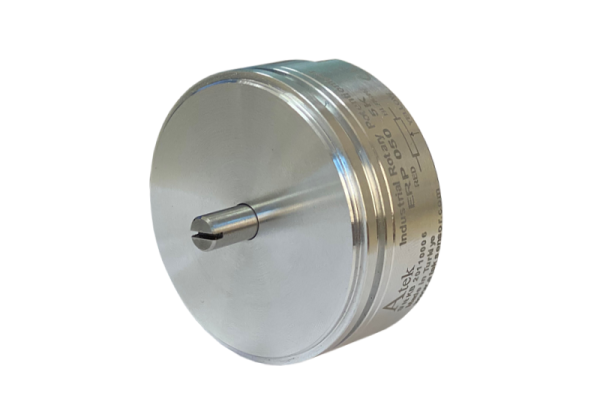

Atek ERP 50 Series Rotary Potentiometer
Save Product Save Product
Call for Pricing
60°, 90°, 345°, 350°, 355° electrical angle
6 mm or 6.34 mm shaft diameter
±0.5% linearity
1000 RPM operating speed
Long life up to 10 million movements
IP40 protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Electrical Angle | 60°, 90°, 345°, 350°, 355° |
|---|---|
| Resistance Values | 1K, 2K, 5K, 10K |
| Resistance Tolerance | ±%2 0 |
| Repeatability | 0.1° max. |
| Independent Linearity | ±% 0.5 |
| Output Type | Potentiometric, 0-10V, 4-20mA or 0-20mA |
| Supply Voltage | For potentiometric output: 42V max. For current or voltage output: 12…30VDC max. |
| Recommended Wiper Current | 100 µA max. |
| Minimum Life (electrical) | 10 million movements |
| Electrical Connection | 3×0,102 mm2 PVC cable (standard 1m, optional others) |
| Mounting | With 3 clamps |
| Size | Servo size 20 |
| Mechanical Angle | 360°, continuous |
| Operating Temperature | -25°C … +75°C |
| Protection Class | IP40 |
Additional information
| Brand | Atek |
|---|---|
| Output | Analog, Potentiometric |
