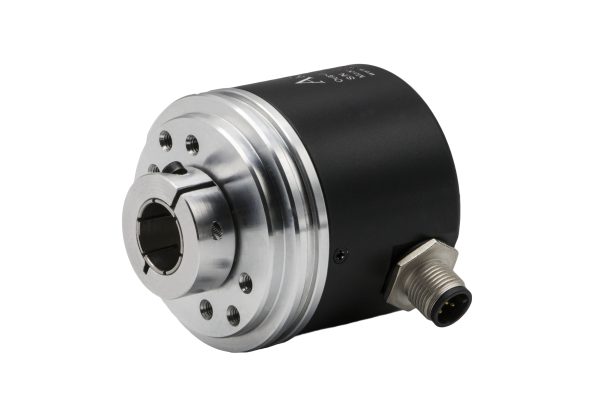

Atek MAS Series Programmable Multiturn Absolute Rotary Encoder
Save Product Save Product
Call for Pricing
Absolute measurement with magnetic principle
50 mm or 58 mm body diameter
Shaft or semi hollow shaft
CANopen or analog output
For Analog output 14 bit resolution
For CANopen output singleturn:1…14 bit, multiturn:1…32 bit resolution
3000 RPM operating speed
IP64 protection
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| ELECTRICAL SPECIFICATIONS | –> |
|---|---|
| Working Principle | Hall Effect |
| Measuring Range | 2…2¹⁷ tur |
| Supply Voltage | Analog : 15 … 26 VDC CANopen : 8 … 32 VDC |
| Current Consumption | ≤60 mA |
| Accuracy | Yes |
| Doğruluk | ±0,5° |
| Angular Resolution | For Analog output: 16 Bit For CANopen output: singleturn 1…14 bit, multiturn 1…32 bit, Singleturn + Multiturn <= 31 bits |
| Response Frequency | 500 Hz |
| Electrical Interface | CANopen Analog: 4-20 mA, 0-10 V, 0-5 V, 0.5-4.5 V (optional programmable) |
| MECHANICAL SPECIFICATIONS | –> |
| Maximum Speed | 3000 RPM |
| Body Diameter | 50 veya 58 mm |
| Protection | IP64 |
| Operating Temperature | -20 … +70 °C |
| Relative Humudity | % 10 … % 90 |
| Material | Shaft: Stainless Steel Body: Aluminum |
| CANOPEN SPECIFICATIONS | –> |
| Communication Profile | CiA 301 |
| Device Type | CANopen, CiA DS406 |
| Node ID | t can be set from 1 to 127 with LSS or SDO Default Node ID:1 |
| Baud Rate | |
| PDO Data Rate | 100 ms |
| Error Control | Heartbeat, Emergency Message |
| PDO | 3 Tx PDO |
| PDO Modes | Event/Time triggered, Synch/Asynch |
| SDO | 1 server |
| Position Information | Object Dictionary 0x6020 |
| Termination Resistance | Optional |
Additional information
| Brand | Atek |
|---|---|
| Output | Analog, CANopen |
