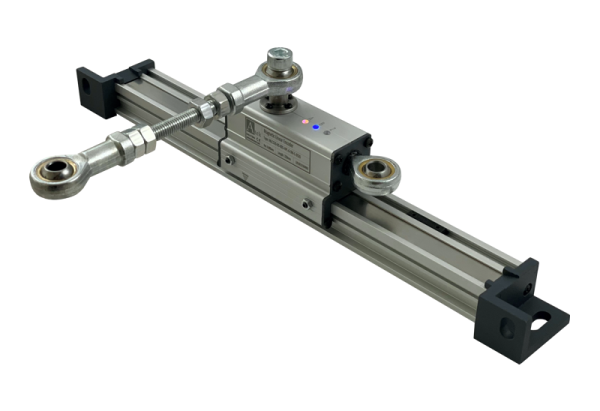

Atek MLC 520 Series Linear Encoders
Save Product Save Product
Call for Pricing
Magnetic, non-contact measurement
Incremental encoder output
Fixed Z reference point
Different measuring lengths between 50 … 2000 mm
Resolution options up to 5 µm
IP67 protection
LED indicator
Compatible with Delem, Cybelec and ESA
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Measuring Length | Different options between 50 … 2000 mm |
|---|---|
| Resolution | 5µm, 10µm, 25µm,50 µm, 62.5µm |
| Measuring Type | Magnetic, non-contact |
| Output Type | Push-Pull or TTL RS422 Line Driver |
| Magnetic Tape | B2 |
| Output Signals | A, /A, B, /B, Z, /Z |
| Current Consumption | 40 mA /channel max. |
| Supply Voltage | PPL: 10..30 VDC or TTL: 5 VDC |
| Material | Sensor: Anodized aluminum and delrin Profile: Anodized aluminum |
| Electrical Connection | D-Sub 9 pin, 5 or 8 x 0,14 mm2 shielded cable |
| Maximum Speed | 3 m/s |
| Accuracy | ± 35 µm/m |
| Repeatability | ± 1 Pulse |
| Operating Temperature | -25°C … +85°C |
| Protection | IP67 |
Additional information
| Brand | Atek |
|---|---|
| Output | Push-Pull / TTL |
