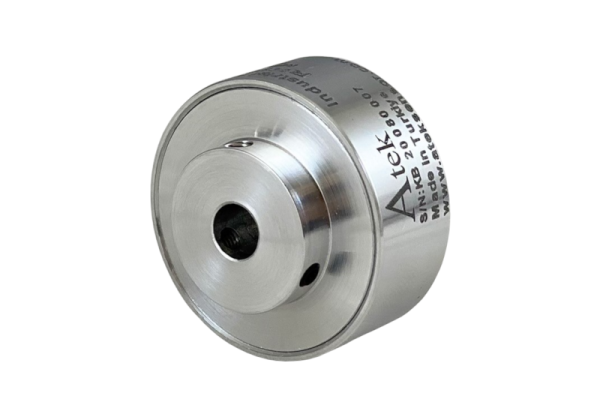

Atek RHP 30 Series Rotary Potentiometer
Save Product Save Product
Call for Pricing
20°, 45°, 150°, 180°, 354° electrical angle
6…8 mm hollow diameter
Linearity up to ±0.5%
Long life up to 10 million movements
IP63 protection class
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Electrical Angle | 20°, 45°, 150°, 180°, 354° |
|---|---|
| Resistance Values | 1K, 2K, 5K, 10K |
| Resistance Tolerance | ±% 20 |
| Repeatability | 0.1° max. |
| Independent Linearity | ±%0.5 |
| Output Type | Potentiometric, 0-10V, 4-20mA or 0-20mA |
| Supply Voltage | For potentiometric output: 42V max. For current or voltage output: 12…30VDC max. |
| Recommended Wiper Current | 100 µA max. |
| Minimum Life (electrical) | 10 million movements |
| Electrical Connection | 3×0,102 mm2 PVC cable (standard 1m, optional others) |
| Mechanical Angle | 360°, continuous |
| Torque | 0.5 Ncm max. |
| Operating Temperature | -25°C … +75°C |
| Protection Class | IP63 |
Additional information
| Brand | Atek |
|---|---|
| Output | Potentiometric |
