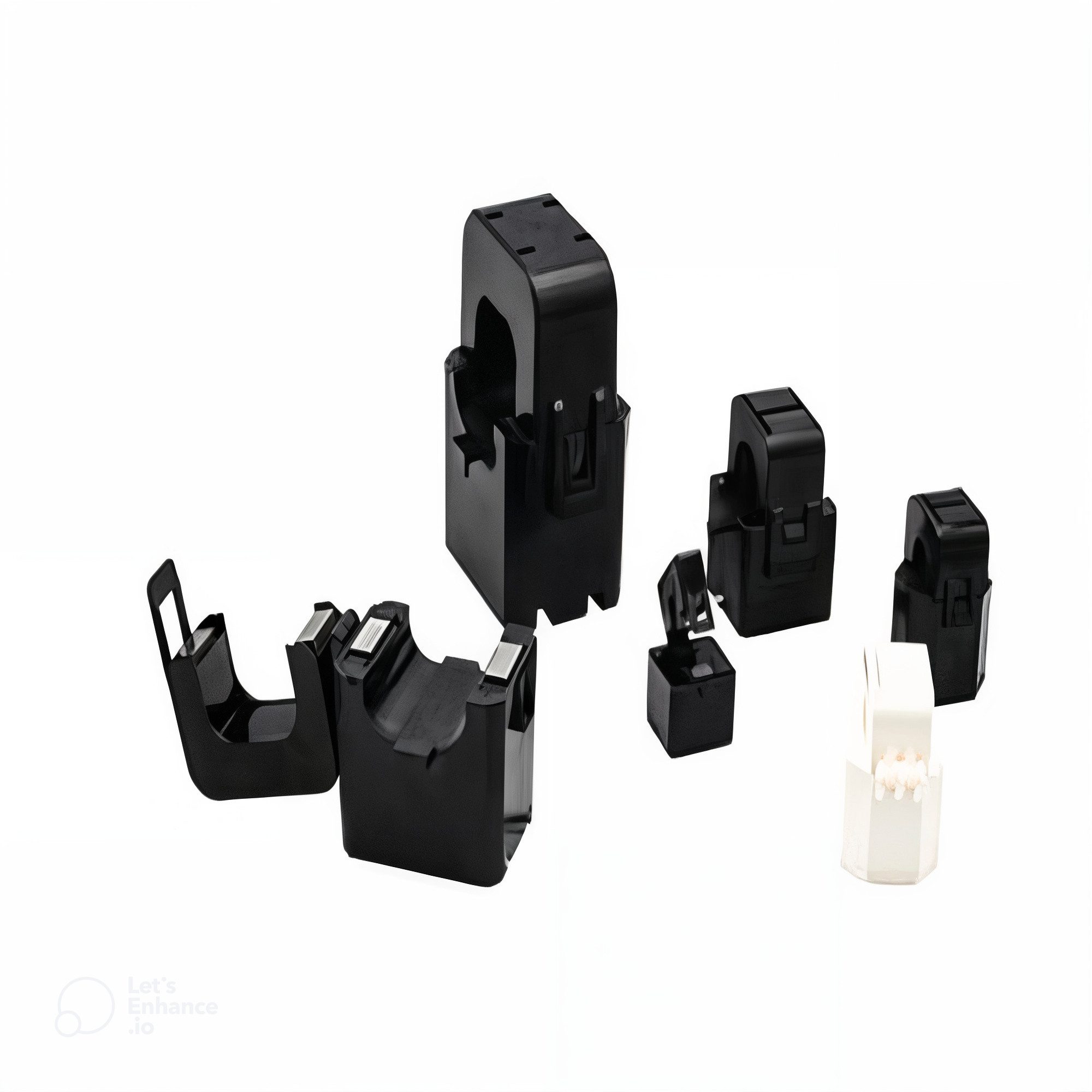

KCT-36, Split Core CT
$49.68 ex. GST
KCT-36, 200A/333mv, Split Core CT, 1m Cable
Did you like this product? Add to favorites now and follow the product.
Save Product Save Product
Have a Question? Ask a Specialist
1800 2 ION TG Call Us
Description
| Electrical Parameter | Mechanical Parameter | ||
| Frequency | 50-2KHz | Case | PA/UL94-V0 |
| Rated Input | 300A-600A | Bobbin | PBT |
| Measuring range | 10%In-120%In | Core | Silicon steel |
| Rated Output | 0.333V(AC) | Internal structure | Epoxy |
| Ratio | ≤ ± 1.0% | Construction | Tie |
| Phase angle | ≤ ±60min | Operation Temp | -25oC~+75oC |
| Dielectric strangth | 2.5KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩ min | Output Connection | UL1015 20AWG Wire2.5m |
| MODEL | KCT-36 | ||||
| Current Ratio | 300~200A/0.333V | ||||
| Primary Current | 100~600A | ||||
| Max.Current | 720A | ||||
| Output | 333mV | ||||
| Protection Level | 7.5V0-P | ||||
| Insulation Category | CATIII | ||||
| Operating Condition | -20℃～+50℃,≤85%RH, No condensation,IN-house&Any direction installable |
||||
| Storage Condition | -30℃～+50℃,≤85%RH,No condensation | ||||
Additional information
| Brand | ASCT |
|---|---|
| Primary current | 200A |
