Accuenergy / ION RIK-5A-RC1-200-3
Save Product Call for Pricing
- Rogowski Coil Integrator, 0-5A rated output that works with any power meter with 5A nominal current transformer input
- Kit includes 3 * ION RC1-200-3 Rogowski Coils
- Current sensing range from 2.5A to 50,000A to fit all systems
- Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
- Individual CT ratios can be configured for each channel.
- Supplied with 240VAC/24VDC Power Supply mounted on DIN rail.
Did you like this product? Add to favorites now and follow the product.
Save Product
1800 2 ION TG Call Us
Description

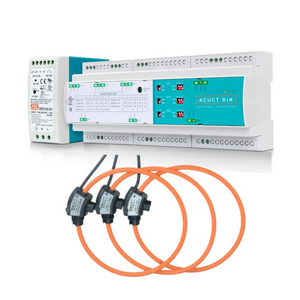

The Accuenergy Rogowski Integrator Kit (RIK) brings the convenience and flexibility of Rogowski coil current transformers to any device that accepts a 5A input, such as a power meter. The Rogowski Integrator Kit delivers a simple, plug-and-play solution to situations where physical space may be limited, such as crowded electrical panels, or to installations that include large, irregularly shaped conductors like busbars. Highly adaptable, the seven user-selectable input ranges ensure the Rogowski Integrator Kit will be compatible with any system up to 60,000A AC.
This kit includes 3 * ION RC1-200-3 Rogowski Coils, 200mm diameter with 3m lead.
Additional information
| Brand | Accuenergy, ION |
|---|---|
| Application | Rogowski Integrator 5A Output |
| Rating | 500A to 50kA |
