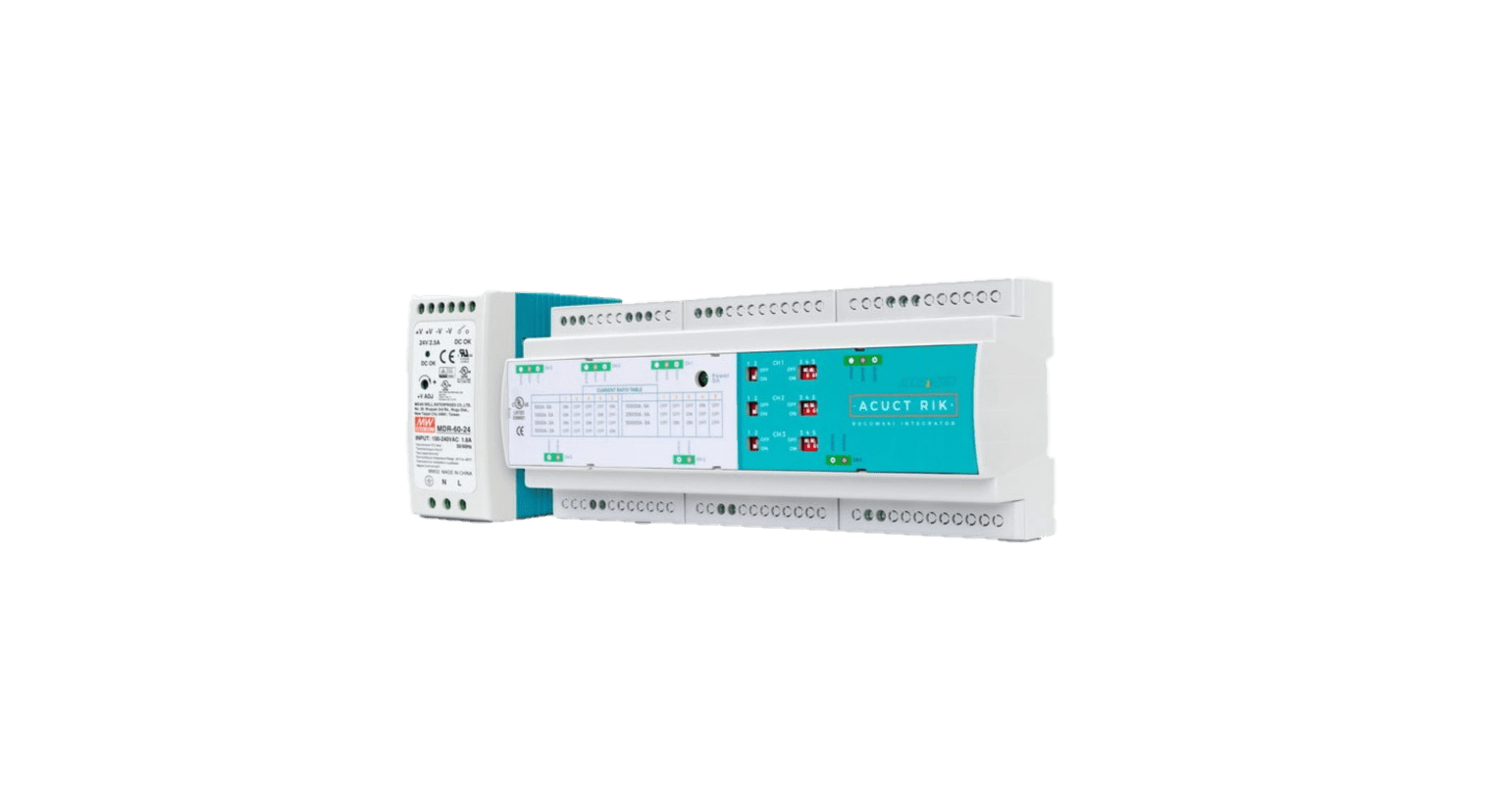

Accuenergy RIK-5A-KIT
Save Product - Rogowski Coil Integrator, 0-5A rated output that works with any power meter with 5A nominal current transformer input
- Combine with flexible rope-like current sensor, designed to easily fit into panels where space may be limited (Not included)
- Current sensing range from 2.5A to 50,000A to fit all systems
- Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
- Individual CT ratios can be configured for each channel.
- Supplied with 240VAC/24VDC Power Supply mounted on DIN rail.
Did you like this product? Add to favorites now and follow the product.
Save Product
1800 2 ION TG Call Us
Description
The Accuenergy Rogowski Integrator Kit (RIK) brings the convenience and flexibility of Rogowski coil current transformers to any device that accepts a 5A input, such as a power meter. The Rogowski Integrator Kit delivers a simple, plug-and-play solution to situations where physical space may be limited, such as crowded electrical panels, or to installations that include large, irregularly shaped conductors like busbars. Highly adaptable, the seven user-selectable input ranges ensure the Rogowski Integrator Kit will be compatible with any system up to 60,000A AC.
Combine this integrator with Rogowski Coils (not included) to suit your application.
Use Accuenergy RCTxx-1000 or Ion RC1 range of coils.
Additional information
| Brand | Accuenergy |
|---|---|
| Application | Rogowski Integrator 5A Output |
| Rating | 500A to 50kA |
